Tile Struct Reference

A component that represents one square in a tilemap. More...

#include <Tile.h>

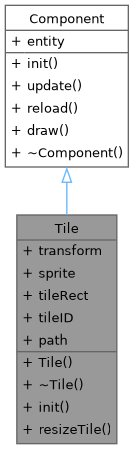

Inheritance diagram for Tile:

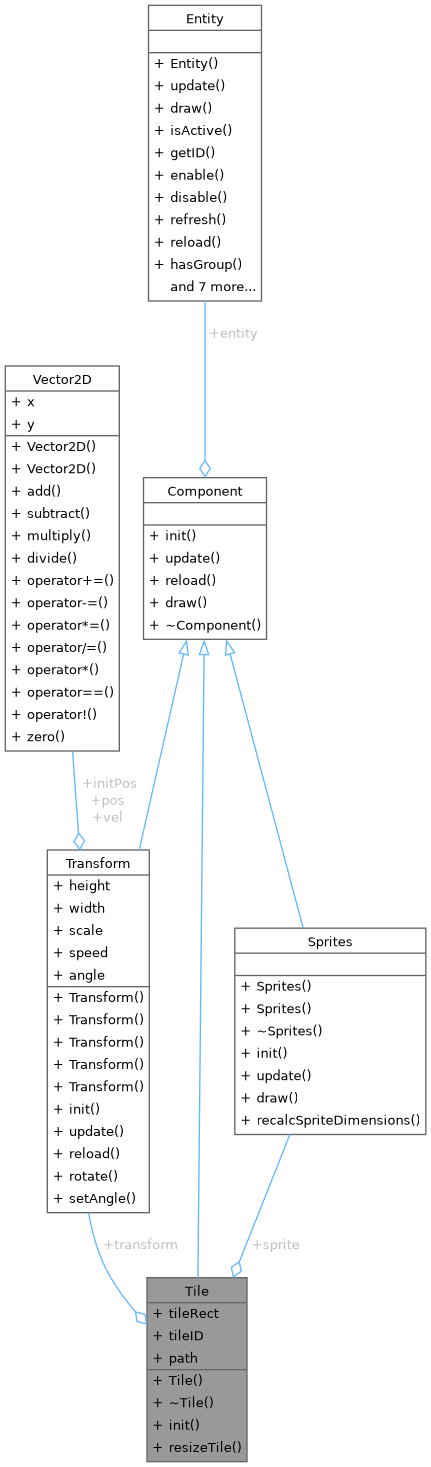

Collaboration diagram for Tile:

Public Member Functions
	Tile (int x, int y, int w, int h, int id)
	Constructs a Tile.
void	init () override
	Initializes the tile by adding Transform and Sprite components to its entity.
void	resizeTile (int w, int h, float scale=0.64f)
	Resizes the tile's underlying components.
Public Member Functions inherited from Component
virtual void	update ()
	Called once per frame. Contains the component's main logic.
virtual void	reload ()
	Called to reset the component's state.
virtual void	draw ()
	Called once per frame after update. Used for rendering.

Public Attributes
Transform *	transform
	Pointer to the tile's Transform component.
Sprites *	sprite
	Pointer to the tile's Sprite component.
SDL_Rect	tileRect
	The rectangle defining the tile's position and size.
int	tileID
	The identifier for the type of tile (e.g., wall, path).
const char *	path
	The file path to the tile's texture.
Public Attributes inherited from Component
Entity *	entity
	Pointer to the entity that owns this component.

Detailed Description

A component that represents one square in a tilemap.

This is a convenience component that combines a Transform and a Sprite and holds data specific to its role in a map, like its ID.

Constructor & Destructor Documentation

Tile()

Tile::Tile	(	int	x,
		int	y,
		int	w,
		int	h,
		int	id
	)

Constructs a Tile.

Parameters

x	The grid x-coordinate.
y	The grid y-coordinate.
w	The width of the tile.
h	The height of the tile.
id	The tile's type ID.

Here is the call graph for this function:

Member Function Documentation

init()

void Tile::init ( )

overridevirtual

Initializes the tile by adding Transform and Sprite components to its entity.

Reimplemented from Component.

Here is the call graph for this function:

resizeTile()

void Tile::resizeTile	(	int	w,
		int	h,
		float	scale = 0.64f
	)

Resizes the tile's underlying components.

Parameters

w	The new width.
h	The new height.
scale	The new rendering scale.

Here is the call graph for this function:

---

The documentation for this struct was generated from the following files:

• include/Tile.h
• src/Tile.cpp
