Text Struct Reference

A component that renders a string of text on the screen. More...

#include <Text.h>

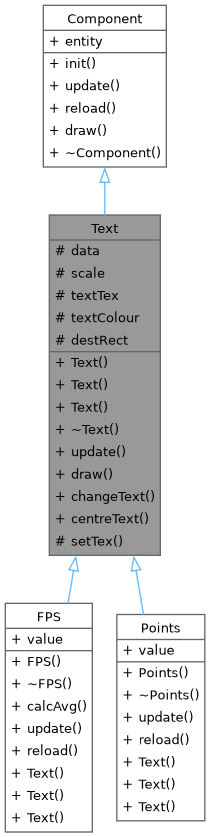

Inheritance diagram for Text:

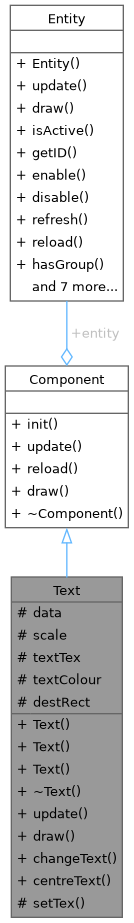

Collaboration diagram for Text:

Public Member Functions
	Text (std::string inStr, int x, int y, float scale, SDL_Color color)
	Constructs a fully customized Text component.
	Text (std::string inStr, int x, int y, float scale)
	Constructs a Text component with a default color.
	Text (std::string inStr, int x, int y)
	Constructs a Text component with a default color and scale.
void	update () override
	Updates the destination rectangle for rendering.
void	draw () override
	Draws the text texture to the screen.
void	changeText (std::string text)
	Changes the text content and regenerates the texture.
void	centreText (SDL_Rect &parentRect)
	Adjusts the text's position to be centered within a parent rectangle.
Public Member Functions inherited from Component
virtual void	init ()
	Called once when the component is added to an entity.
virtual void	reload ()
	Called to reset the component's state.

Protected Member Functions
void	setTex (const char *text)
	Creates a new texture from a string of text.

Protected Attributes
std::string	data
float	scale
SDL_Texture *	textTex
SDL_Colour	textColour
SDL_Rect	destRect

Additional Inherited Members
Public Attributes inherited from Component
Entity *	entity
	Pointer to the entity that owns this component.

Detailed Description

A component that renders a string of text on the screen.

Wraps SDL_ttf to create a texture from a string and displays it.

Constructor & Destructor Documentation

Text() [1/3]

Text::Text	(	std::string	inStr,
		int	x,
		int	y,
		float	scale,
		SDL_Color	color
	)

Constructs a fully customized Text component.

Parameters

inStr	The initial string to display.
x	The x-position.
y	The y-position.
scale	The rendering scale.
color	The color of the text.

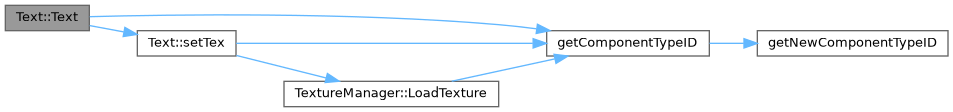

Here is the call graph for this function:

Text() [2/3]

Text::Text	(	std::string	inStr,
		int	x,
		int	y,
		float	scale
	)

Constructs a Text component with a default color.

Parameters

inStr	The initial string to display.
x	The x-position.
y	The y-position.
scale	The rendering scale.

Here is the call graph for this function:

Text() [3/3]

Text::Text	(	std::string	inStr,
		int	x,
		int	y
	)

Constructs a Text component with a default color and scale.

Parameters

inStr	The initial string to display.
x	The x-position.
y	The y-position.

Here is the call graph for this function:

Member Function Documentation

centreText()

void Text::centreText

(

SDL_Rect &

parentRect

)

Adjusts the text's position to be centered within a parent rectangle.

Parameters

parentRect

The rectangle to center within.

Here is the call graph for this function:

changeText()

void Text::changeText

(

std::string

text

)

Changes the text content and regenerates the texture.

Parameters

text	The new string to display.

draw()

void Text::draw ( )

overridevirtual

Draws the text texture to the screen.

Reimplemented from Component.

Here is the call graph for this function:

setTex()

void Text::setTex ( const char *  text )

protected

Creates a new texture from a string of text.

Parameters

text	The string to render.

Here is the call graph for this function:

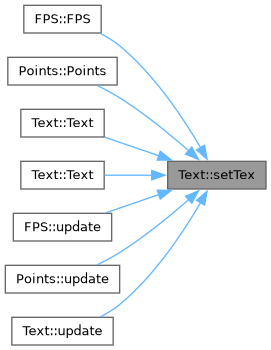

Here is the caller graph for this function:

update()

void Text::update ( )

overridevirtual

Updates the destination rectangle for rendering.

Reimplemented from Component.

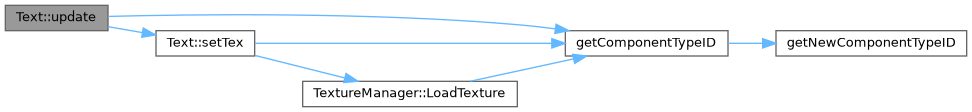

Here is the call graph for this function:

---

The documentation for this struct was generated from the following files:

• include/Text.h
• src/Text.cpp
