Animator Struct Reference

Manages sprite sheet animations and transitions between them using a state machine. More...

#include <Animator.h>

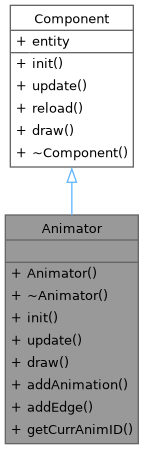

Inheritance diagram for Animator:

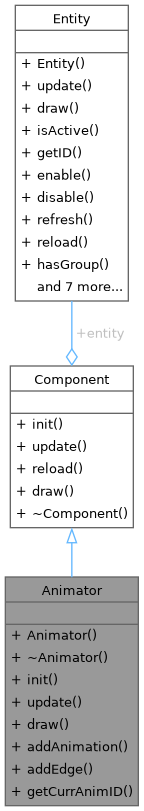

Collaboration diagram for Animator:

Classes
struct	Animation
	Represents a single, self-contained animation sequence. More...
struct	Edge
	Defines a transition edge between two animations in the state machine. More...

Public Member Functions
void	init () override
	Initializes the Animator component, acquiring the entity's Sprite component.
void	update () override
	Updates the current animation state, checking for transitions and advancing the frame.
void	draw () override
	Draws the current frame of the active animation.
void	addAnimation (const char *id, const char *texPath, int speed=100, const bool isLooping=true, const bool isReversible=false)
	Adds a new animation state to the animator's state machine.
void	addEdge (const char *idFrom, const char *idTo, std::vector< std::shared_ptr< bool > > conditions)
	Defines a conditional transition between two animations.
std::string	getCurrAnimID ()
	Gets the ID of the currently playing animation.
Public Member Functions inherited from Component
virtual void	reload ()
	Called to reset the component's state.

Additional Inherited Members
Public Attributes inherited from Component
Entity *	entity
	Pointer to the entity that owns this component.

Detailed Description

Manages sprite sheet animations and transitions between them using a state machine.

This component controls an entity's sprite to play different animation sequences. It uses an adjacency matrix to define transitions (Edges) between animations based on conditions.

Member Function Documentation

addAnimation()

void Animator::addAnimation	(	const char *	id,
		const char *	texPath,
		int	speed = 100,
		const bool	isLooping = true,
		const bool	isReversible = false
	)

Adds a new animation state to the animator's state machine.

Parameters

id	The unique identifier for the new animation.
texPath	The file path to the sprite sheet texture.
speed	The delay in milliseconds between frames.
isLooping	Whether the animation should loop.
isReversible	Whether the animation should play in reverse after finishing.

Here is the call graph for this function:

addEdge()

void Animator::addEdge	(	const char *	idFrom,
		const char *	idTo,
		std::vector< std::shared_ptr< bool > >	conditions
	)

Defines a conditional transition between two animations.

Parameters

idFrom	The ID of the source animation state.
idTo	The ID of the destination animation state.
conditions	A vector of pointers to booleans that must be true to transition.

Here is the call graph for this function:

draw()

void Animator::draw ( )

overridevirtual

Draws the current frame of the active animation.

Reimplemented from Component.

getCurrAnimID()

std::string Animator::getCurrAnimID

(

)

Gets the ID of the currently playing animation.

Returns

A string representing the ID of the current animation.

init()

void Animator::init ( )

overridevirtual

Initializes the Animator component, acquiring the entity's Sprite component.

Reimplemented from Component.

Here is the call graph for this function:

update()

void Animator::update ( )

overridevirtual

Updates the current animation state, checking for transitions and advancing the frame.

Reimplemented from Component.

Here is the call graph for this function:

---

The documentation for this struct was generated from the following files:

• include/Animator.h
• src/Animator.cpp
